Chevrolet GM LS LSX LS1 LM7 LR4 LQ4 L59 LQ9 LM4 L33 L92 L76 LY2 LY5 LY6 LC9 LH8 LMG L98 L99 L96 LC8 Sanden 508 A/C Air Conditioner Compressor Bracket Kit

• 100% brand new items, never used or installed.
• A/C air conditioner compressor bracket kit.
• Made by OEM approved manufacturers with materials that meets or exceeds strict OEM requirements.

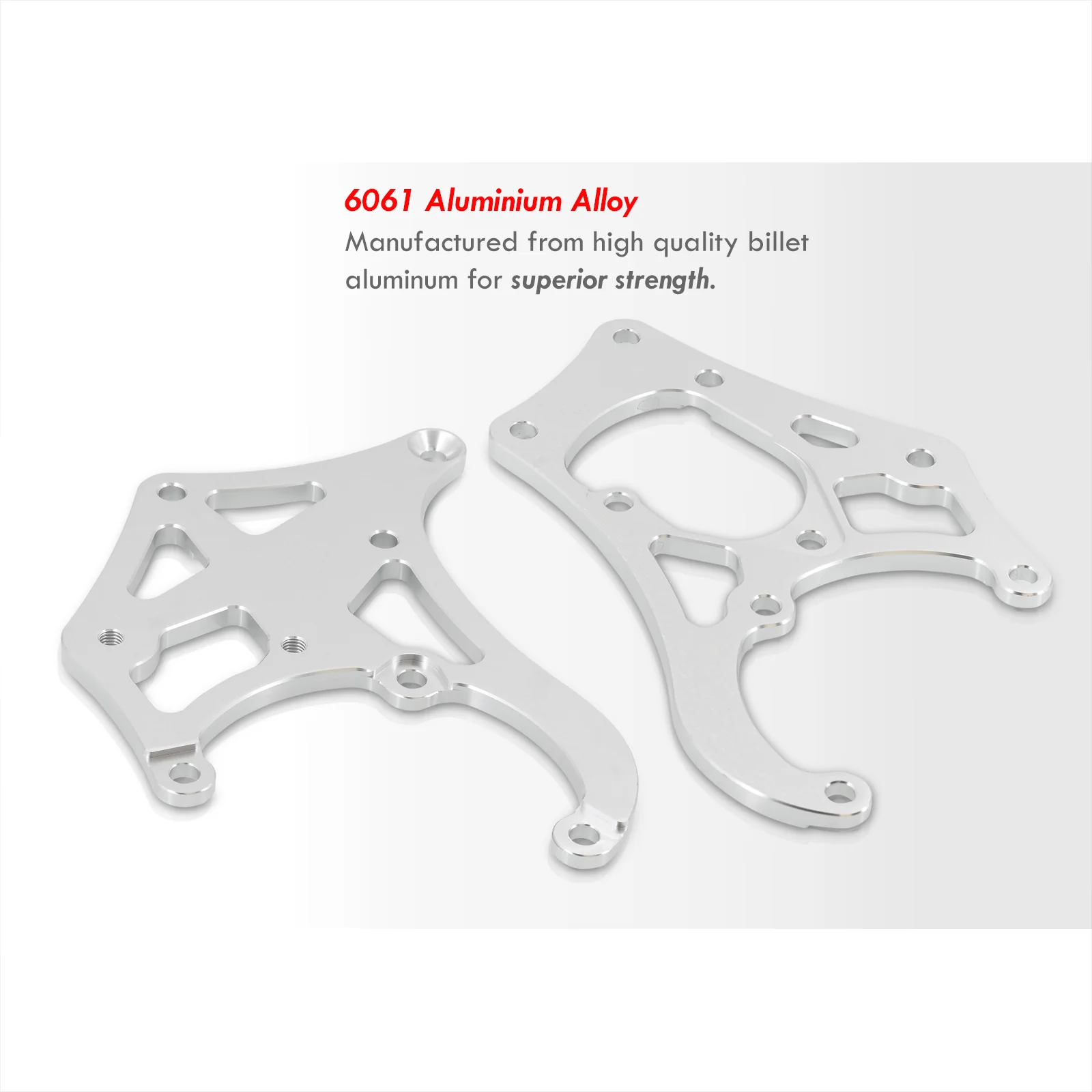

• Manufactured from high quality CNC-machined T-6061 billet aluminum for superior strength and durability.
• Use this bracket to install a Sanden 508 A/C compressor on your LS engine up out of the way of frame rails, motor mounts, and fenderwalls, using a factory LS belt tensioner.
• This kit uses truck spacing, which requires a GM crank pulley.
• It also utilizes a 1998-2002 Camaro LS1 belt tensioner.

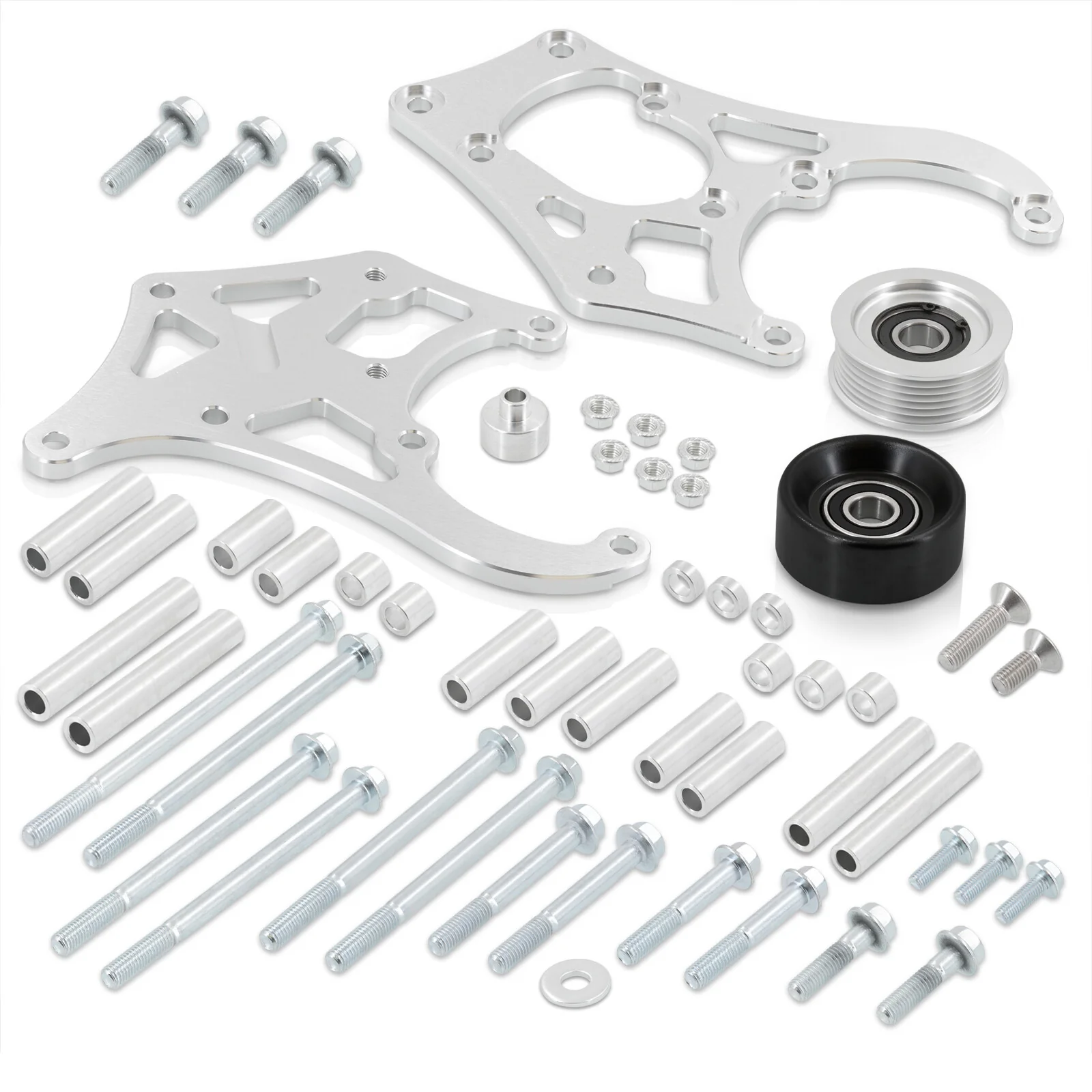

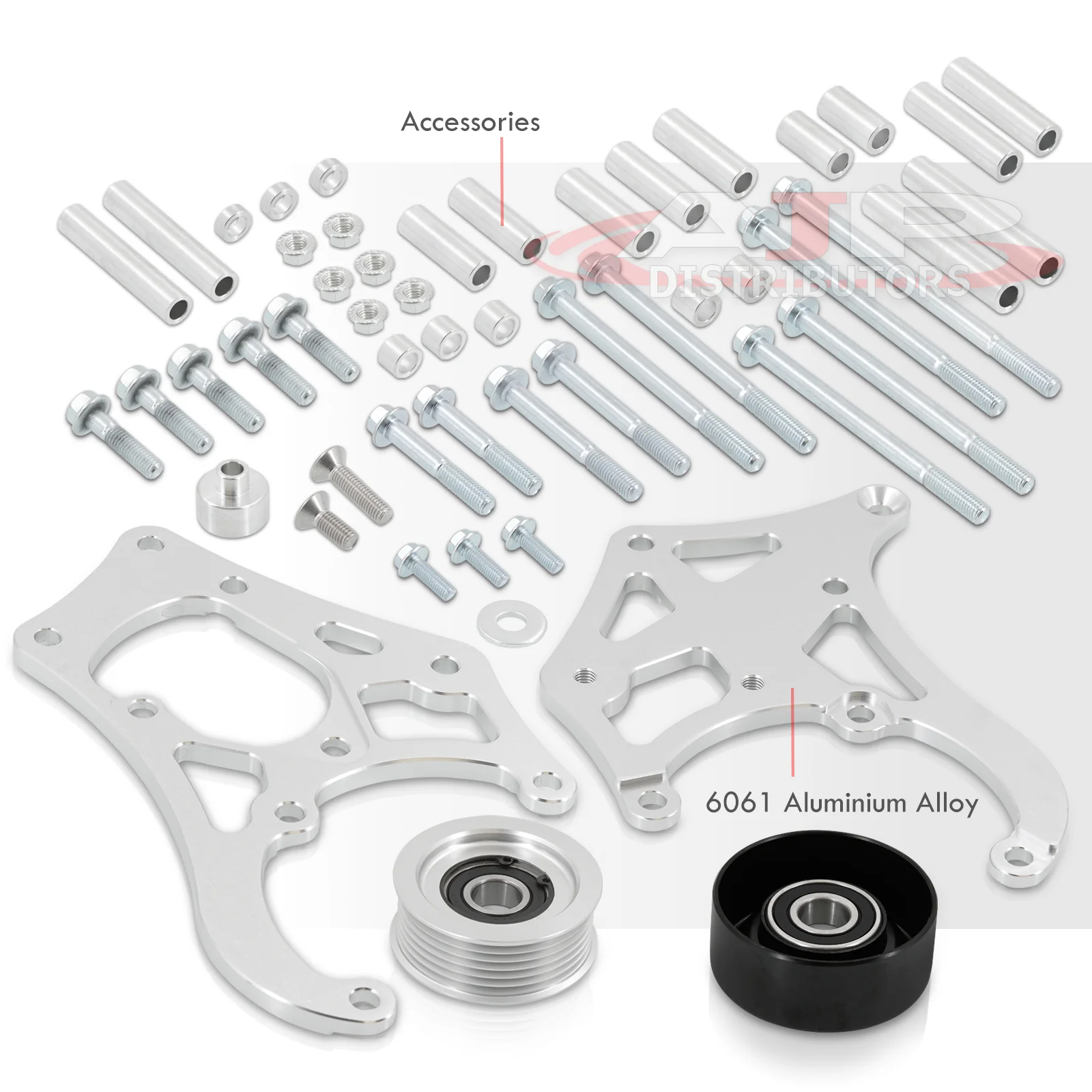

• Includes compressor bracket set, idler pulley, tensioner pulley, and mounting hardware.
• No installation guides are included, we highly recommend seeking professional installation.

Compatible/Replacement for:

• Sanden 508 Compressor
• Vintage Air Sanden 508 Compressor

** Requires 1998-2002 Camaro LS1 type belt tensioner, crank pulley & water pump (any LS engine powered truck style water pump). **

** Compatible with 100 inch belt with idler relocation bracket and factory alternator/power steering bracket.

** Also compatible with 101 inch belt when using a 145/160-amp alternator. **

** Bracket does not fit factory GM LS engine style compressors. **
